Same Quality, Lower Cost: Shengyangtong’s 15 Years of Expertise in Vape Pod Electrode Posts (Using the foger Vape Pod Electrode / Charging Post as an Example)

Using the foger vape pod electrode / charging post as an example, here is how Shengyangtong Technology delivers cost reduction at equal quality — and reliable high-volume production at the same time.

To most people, a vape device is about the shell, the flavor, and the battery. But engineers know the part that really decides whether the device “vapes smoothly and charges reliably” is a small, easy-to-overlook metal component at the bottom of the pod — the electrode post and the charging post.

They are small, but they carry a lot: they have to keep current flowing steadily between the pod and the device, and stay low-resistance, oxidation-free, and mechanically stable through every insert, eject, and charge cycle. When these parts fail, the user feels it as “bad contact”, “won’t charge”, or “weak, inconsistent vapor”.

1. Why the foger vape pod electrode / charging post has become an industry reference

In the vape industry, the foger vape pod electrode / charging post is widely referenced. Because its structure is mature and its parameters are well-defined, many domestic vape manufacturers — when developing comparable products — directly use the same specifications and parameters as the foger vape pod electrode / charging post. It has effectively become a de facto industry standard.

That reality creates a very practical demand on the supplier: match the spec, hold the quality, and bring the cost down at high volume. That is exactly where Shengyangtong plays.

2. A small part with a big role: what the electrode post and charging post actually do

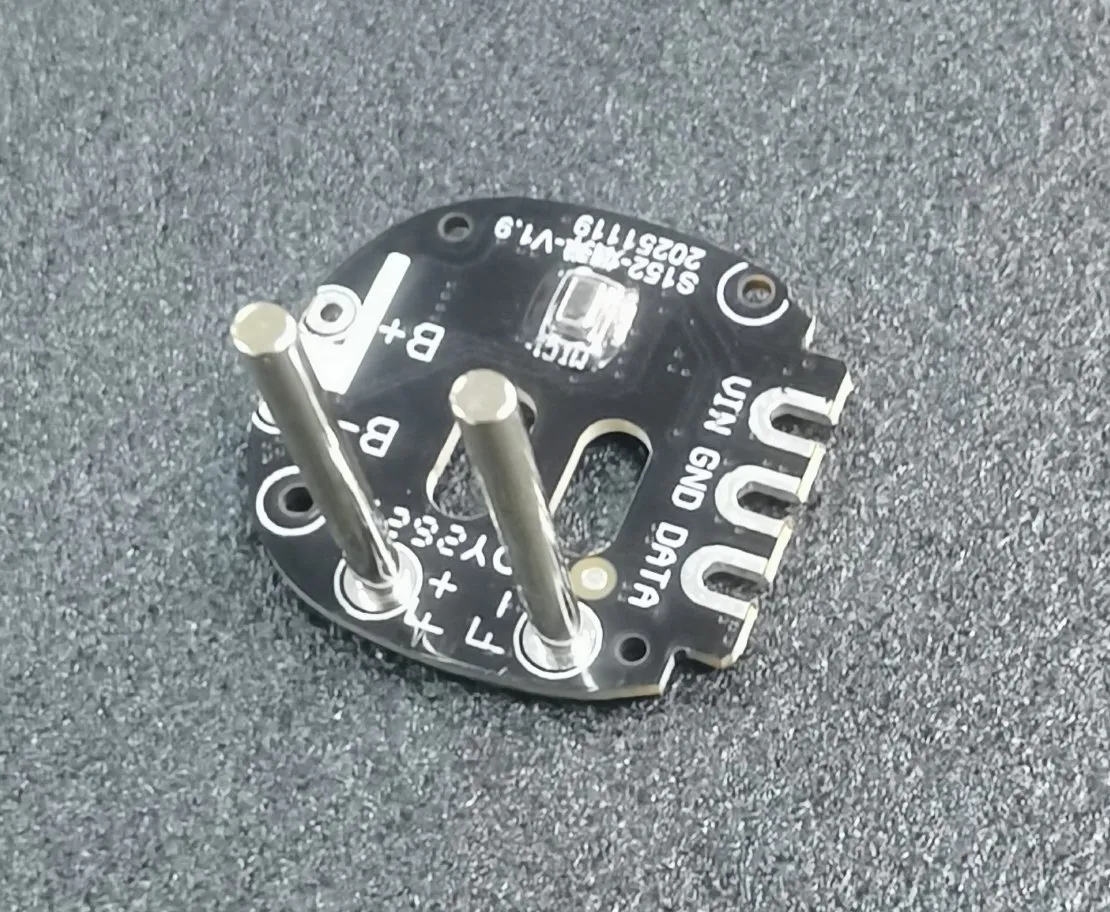

Put simply, the electrode posts at the bottom of the foger vape pod connect the atomizer on one side and the device’s pogo pins and charging contacts on the other. They handle two jobs at once:

• Power electrode post: delivers the device battery’s power to the atomizer, determining whether the vapor output is continuous and consistent.
• Charging post: on models that support bottom-direct charging, it acts as the external charging contact — it has to be wear-resistant, oxidation-resistant, and low contact-resistance, surviving thousands of plug cycles.

For manufacturers using the foger vape pod electrode / charging post, this group of pins is not “good enough if it conducts.” It has to be “identical, every single unit.” Turning that consistency into a standard — and doing it more affordably — is exactly what Shengyangtong is good at.

3. Shengyangtong’s three core capabilities

3.1 Same quality, lower cost

Cost reduction starts with never lowering the quality bar. Material, tolerance, and surface-treatment standards stay intact — we only optimize how we get there:

• Process and fixture standardization: reduces changeover loss and trial-and-error cost; mature processes become reusable “process packages.”
• Scaled procurement and material utilization: nesting layouts and scrap recovery improve material yield, diluting unit cost.
• High yield lowers hidden cost: the real cost of rework, complaints, and after-sales is often higher than the cost of making the part. Every yield point we gain is a real reduction in the customer’s total cost.
• Automation replaces manual labor: critical steps run on automated lines, so unit labor cost drops as volume grows.
  (Actual savings depend on product structure and order volume — feel free to send a sample for evaluation.)

3.2 High-volume manufacturing

Vape products launch fast and have short life cycles. Suppliers have to run steady volume and handle peaks. Shengyangtong runs at the ten-million-piece monthly level, paired with automated lines and 100% online inspection — the larger the batch, the tighter the consistency:

• Multi-SKU parallel scheduling, flexible ramp-up across peak and off-peak seasons — peak capacity still hits the delivery date, never holding up your launch.
• Standardized line replication — new high-volume orders ramp quickly without relying on throwing more people at the problem.
• Batch-to-batch traceability — even at high volume, “this batch and the next batch are the same” stays true.

3.3 15 years of industry know-how

Doing one thing for 15 years leaves you with a list of problems you have already solved — and a list of mistakes you now know to avoid:

• We have watched the industry iterate through multiple structural generations, so common issues are eliminated at the drawing stage.
• A mature process library and supplier network means material selection and surface-treatment plans come with a ready-made “best answer.”
• A mature quality system and response cadence — initial complaint analysis within 24 hours. No dragging, no finger-pointing.

4. Inside the build: the foger vape pod electrode / charging post as an example

Material selection — no compromises

Driven by conductivity and corrosion-resistance requirements, the body uses high-conductivity elastic alloys such as phosphor bronze and beryllium copper, with a gold or nickel plating on the key contact surface — low resistance and long life from the start.

Precision machining, tight tolerance

We use precision turning combined with stamping. Critical dimensions are held to within ±0.02 mm; concentricity and perpendicularity are controlled to ±0.03 mm — guaranteeing a clean mate with the device’s pogo pins.

Surface treatment against oxidation

Gold or nickel plating is selected per use environment, balancing conductivity and corrosion resistance. Neutral salt spray testing reaches 48 hours without substrate corrosion — significantly reducing long-term contact-resistance drift.

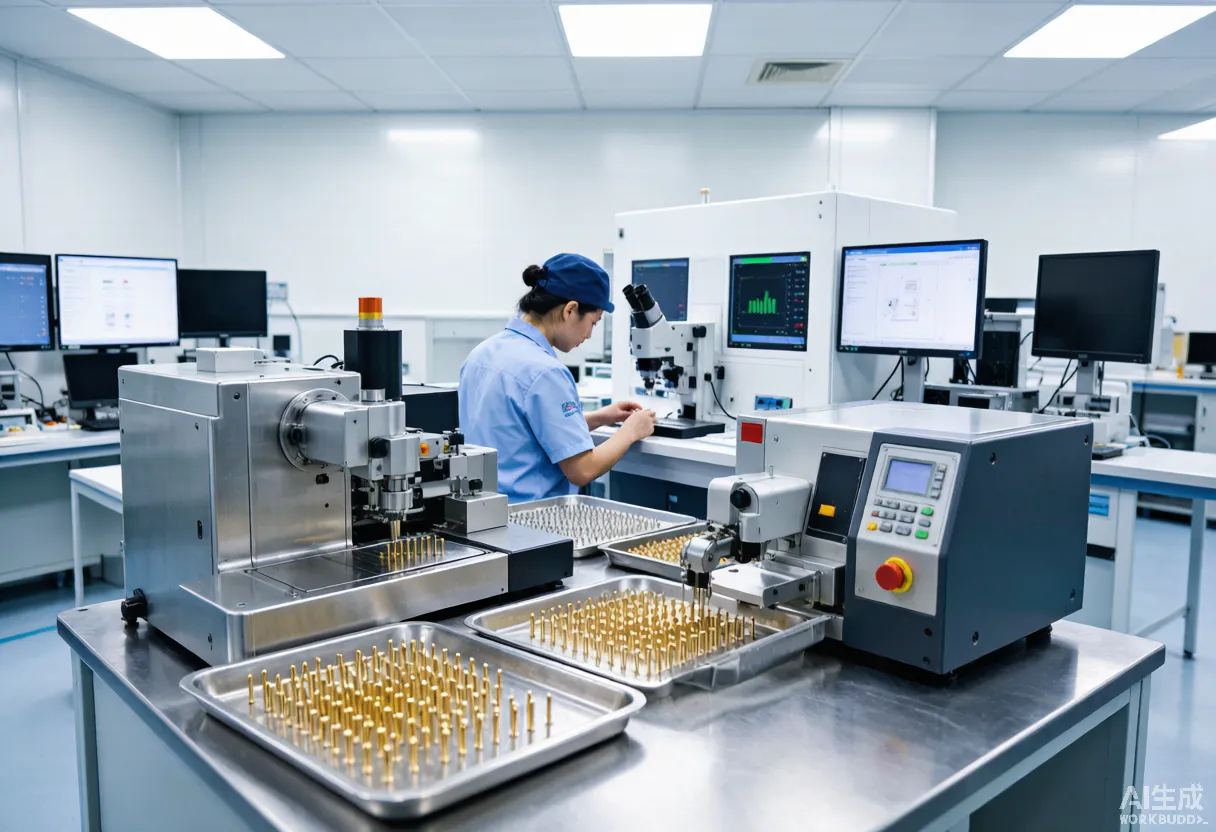

Automation and 100% inspection

CCD vision, continuity testing, and laser height measurement are deployed on the line. Critical parameters are 100% inspected online; batch yield is held at 99.5% or above — no “sampling and hoping for the best.”

Cleanliness and consistency

The workshop is managed to a Class 10,000 (ISO 7) cleanroom standard, eliminating dust and oil that would otherwise affect contact resistance. First-piece, in-process, and last-piece samples are all retained, with full traceability down to the machine and shift.

5. Solving problems upstream, not after the fact

• Early involvement: we join the electrode-structure review at the product-definition stage, baking “easy to assemble, easy to conduct, durable to plug” into the drawing — and avoiding late rework.
• Fast sampling: from drawing to first sample in 7–10 working days, with small-batch trial runs available before ramp-up.
• Quality safety net: incoming, in-process, and outgoing controls, plus 8D exception response — initial complaint analysis within 24 hours.
• Shared cost ownership: from material selection to process, we proactively look for “equal-quality, lower-cost” alternatives alongside the customer — cost reduction is built into the whole cycle.

6. Why brands hand the core contact components to Shengyangtong

• One-stop closed loop: material, machining, surface treatment, and inspection/assembly all in-house — fewer quality and schedule risks from outsourcing.
• Same quality, lower cost: 15 years of process and scale turn a “good component” into an “affordable component.”
• Reliable high-volume delivery: ten-million-piece monthly capacity + automated 100% inspection — peaks don’t faze us, batches stay consistent.
• Traceability and compliance: every batch carries a unique ID; issues are traceable to the machine, shift, and raw-material lot. We support customers with RoHS, REACH, and other compliance documentation for overseas shipment and registration.

7. Frequently asked questions
