Drone Charging Dock Pogo Pin Selection Guide: 5 Key Parameters and 6 Design Rules

The core challenge of drone automatic charging docks is this: landing positions can never be precise to within a fraction of a millimeter, yet electrical connections must be reliable. Pogo Pins (spring-loaded pins) solve this problem with three key characteristics, making them the preferred connector for drone charging docks, charging stations, and other automated docking scenarios.

1. Why Charging Docks Depend on Pogo Pins

The core contradiction of drone automatic charging docks is that landing positions cannot be precise to within a fraction of a millimeter, while electrical docking must be reliable. Pogo Pins address this with three characteristics:

2. Five Selection Parameters (Ranked by Importance)

2.1 Rated Current — The Most Easily Misread Specification

Standard Pogo Pins are designed for signals (<2A); charging pins require a high-current structure: enlarged pin diameter, angled/ball contacts, internal multi-contact current sharing, and gold plating with a nickel barrier layer. The current rating is determined jointly by pin diameter, contact area, materials, plating, and spring structure — it is not simply a number on a datasheet. Maintain a 20% current margin in actual operation.

2.2 Stroke and Compression

Choose longer stroke for larger docking tolerances. Working compression should be approximately 2/3 of the effective stroke, with at least 15% rebound margin reserved to prevent bottoming-out failure and spring fatigue.

2.3 Spring Force (Contact Force)

Too little force causes contact resistance drift; too much damages the PCB and plastic housing. Note that the cumulative force of the entire pin array must rest on the load-bearing structure of the housing, not on the PCB.

2.4 Plating

Gold plating reduces contact resistance and resists corrosion; outdoor applications add a nickel barrier layer to improve salt-spray lifespan. Au/Ni mixed mating is strictly prohibited; Au/Au or PdNi/PdNi pairs are recommended. For more on contact reliability, see our guide to Troubleshooting Pogo Pin Contact Issues.

2.5 Pin Count and Layout

Separate positive/negative power, signal, detection, and ground pins. After parallel-connecting multiple high-current pins, current sharing verification is mandatory (measure contact resistance and temperature rise pin by pin); otherwise, one pin may overheat due to current imbalance.

3. Six Design Rules (The Most Common Failure Points)

3.1 Do Not Let Pogo Pins Bear Structural Loads

They only make electrical contact. Alignment is handled by guide posts/rails, compression force by housing shoulders, and locking by clips/magnets. Otherwise, lateral forces cause plunger wear, angled compression, uneven contact force, or even damage to plastic components.

3.2 Magnets Only Assist Alignment — They Do Not Lock

Magnets help guide landing and hold the connection, but flight loads must be borne by mechanical structures. For magnetic charging design insights, refer to our AI Glasses Magnetic Charging Solution Guide.

3.3 Contact Sequence: Ground First, Then Power

During angled landing, pins do not contact simultaneously. The design must ensure ground pins connect first → detection pins confirm docking → software enables the main charging circuit, to prevent arcing and accidental energization. Power pins should be kept away from exposed edges of the interface.

3.4 Outdoor Charging Pads Require Environment-Grade Protection

IP54 is sufficient for indoor use; outdoor installations require IP65/67 (sealing rings + labyrinth dust protection + corrosion-resistant plating) to withstand rain, dust, and salt spray.

3.5 Verify Compression Consistency Across the Entire Array

On large interfaces, housing tilt or flatness variations cause different compression levels across pins. Measure each pin after assembly — do not rely on single-pin specifications alone.

3.6 Three Factory Validation Tests

Mating cycle life (tens of thousands of cycles, monitoring contact resistance drift), high-current temperature rise (verifying current sharing), and salt spray + thermal cycling tests.

4. Common Misconceptions

• Assuming “enough current is sufficient” while neglecting parallel current sharing — uneven heating will burn out one pin first.
• Using magnetic force as locking force — it will disengage under vibration and shock.
• Setting compression to full stroke — the spring fatigues quickly and contact force decays.
• Mixed plating (Au contact against Ni contact) — electrochemical corrosion causes rapid contact resistance degradation.

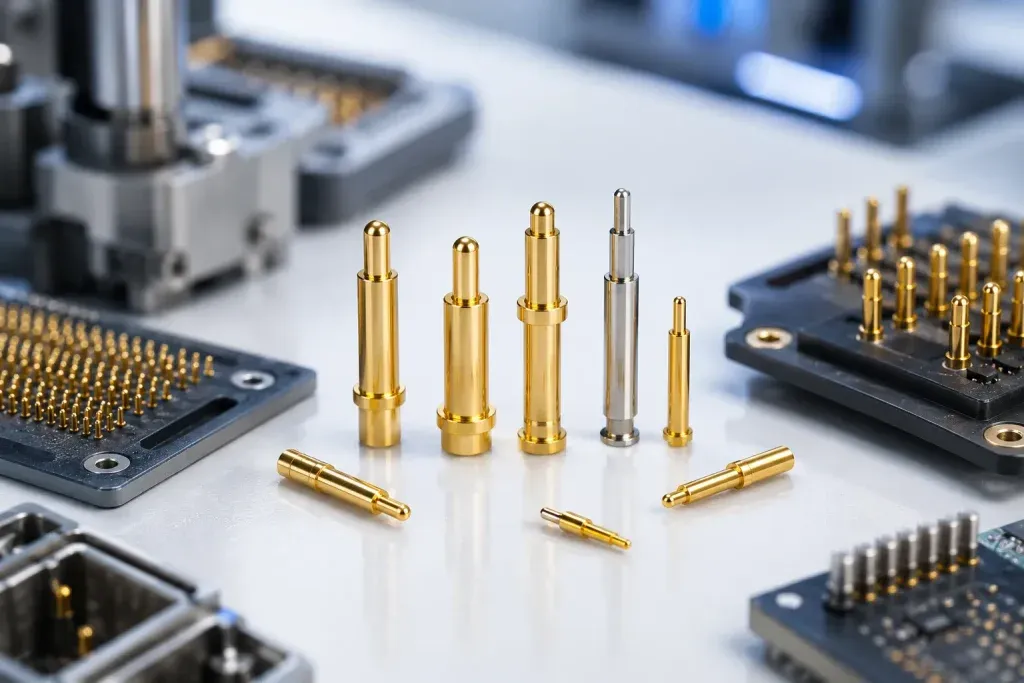

Mastering the above selection points and design rules is essential for maintaining high reliability in drone charging docks during long-term automated operation. WOYO Technology, as a professional Pogo Pin manufacturer based in Shenzhen, provides customized high-current spring pin solutions with current sharing verification and environmental reliability testing support.

Core Definition and Key Parameters

Frequently Asked Questions

The following are high-frequency questions about drone charging dock Pogo Pin selection and design, for quick reference by engineers.

Q1: Why must drone charging docks use Pogo Pins instead of ordinary connectors?

Drone landing involves horizontal, vertical, and angular deviations that ordinary rigid connectors cannot compensate for, leading to false connections or damage. Pogo Pins absorb docking deviations through spring stroke (typically 1–5mm), and their solder-free pluggable design suits repeated daily automatic docking. Multi-pin parallel arrays also scale to high-current charging — three characteristics ordinary connectors lack.

Q2: How do I choose the rated current for charging dock Pogo Pins?

Standard signal-type Pogo Pins typically carry <2A and cannot be used directly for charging. Charging docks should select high-current structure Pogo Pins (enlarged pin diameter, angled/ball contacts, internal multi-contact current sharing), with single pins reaching 5–60A. Note that the current rating is determined jointly by pin diameter, contact area, materials, plating, and spring structure. Maintain a 20% margin in actual current, and current sharing verification is mandatory after multi-pin parallel connection.

Q3: What is the appropriate compression for Pogo Pins?

Working compression should be approximately 2/3 of the effective stroke, with at least 15% rebound margin. For example, for a pin with 3mm effective stroke, working compression should be around 2mm, leaving 0.5mm+ rebound margin. Full-stroke compression causes rapid spring fatigue and contact force decay; insufficient compression leads to unstable contact resistance. Longer stroke models should be selected for scenarios with large docking tolerances.

Q4: How do I choose plating for charging dock Pogo Pins? Why is Au/Ni mixed mating prohibited?

Charging docks recommend Au/Au (gold-on-gold) or PdNi/PdNi mating surfaces. Gold plating reduces contact resistance (below 30mΩ) and resists corrosion; outdoor applications add a nickel barrier layer to improve salt-spray lifespan. Au/Ni mixed mating is prohibited because gold and nickel have different electrode potentials, causing electrochemical corrosion in humid environments that rapidly degrades contact resistance — failure occurs even faster in outdoor high-humidity and salt-spray environments.

Q5: Why must the contact sequence be “ground first, then power” for drone charging docks?

During angled drone landing, pins do not contact simultaneously. If power pins connect before ground pins, arcing, accidental energization, or even equipment damage may occur. The correct design sequence is: ground pins connect first → detection pins confirm docking → software enables the main charging circuit. Additionally, power pins should be kept away from exposed edges of the interface to prevent accidental short circuits.

Q6: What protection rating is required for outdoor drone charging pads?

Indoor charging docks require only IP54 for dust and splash protection; outdoor charging pads require IP65 or IP67, achieved through sealing rings, labyrinth dust structures, and corrosion-resistant plating to withstand rain, dust, and salt spray. Outdoor applications should also consider thermal cycling (typically -40°C to 85°C) and UV aging effects on plastic components.

Q7: Why is current sharing verification necessary for multi-pin parallel high-current charging?

In theory, multi-pin parallel connection divides current, but in practice, differences in contact resistance across pins (machining tolerances, uneven compression, plating thickness variations) prevent uniform current distribution. A pin with lower contact resistance will carry excessive current and overheat, potentially melting the contact in severe cases. Therefore, contact resistance and temperature rise must be measured pin by pin to ensure current sharing deviation is within an acceptable range (typically ≤15% per pin).

Q8: What factory validation tests are required for charging dock Pogo Pins?

Three core validation tests: ① Mating cycle life test (tens of thousands of cycles, monitoring contact resistance drift throughout; industrial grade ≥100,000 cycles); ② High-current temperature rise test (energize at rated current for 30+ minutes, measure per-pin temperature rise ≤30°C, verifying current sharing); ③ Environmental reliability test (salt spray test ≥48 hours, thermal cycling -40°C to 85°C, damp heat test). Outdoor products additionally require IP protection rating verification.
